主要技術參數 | Main Specifications | T8018A |
鏜孔直徑mm | Processing Diameter | 42-180 |
最大鏜孔深度mm | Max.Boring Depth | 650 |
主軸轉速r/min | The Rotationl Speed Of Spindle | 175,230,300,350,460,000 |
主軸進給量mm/r | Working Travel of Slideboard | 0.05,0.10,0.20 |
機床功率kw | Maching Power | 3.75 |
外形尺寸mm(L*W*H) | Overall Dimensions | 2680*1500*2325 |
包裝尺寸mm(L*W*H) | Packing Dimensions | 1578*1910*2575 |
凈重/毛重kg | N.W/G.W | 3500/3700 |
錄入時間:2015/12/8 15:36:19 點擊次數:2086

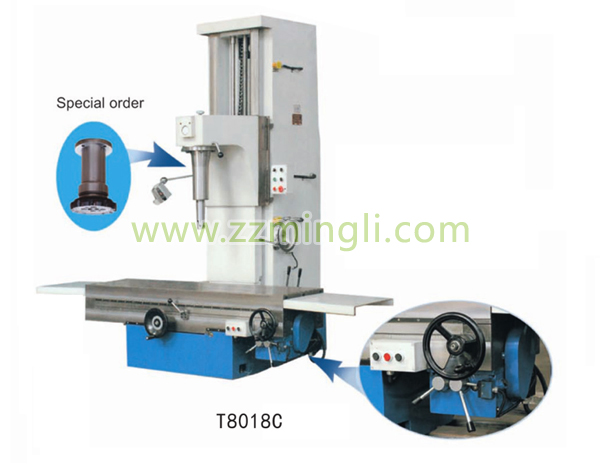

T8018C:http://ayinn.cn/showp-14
