牛頭刨床

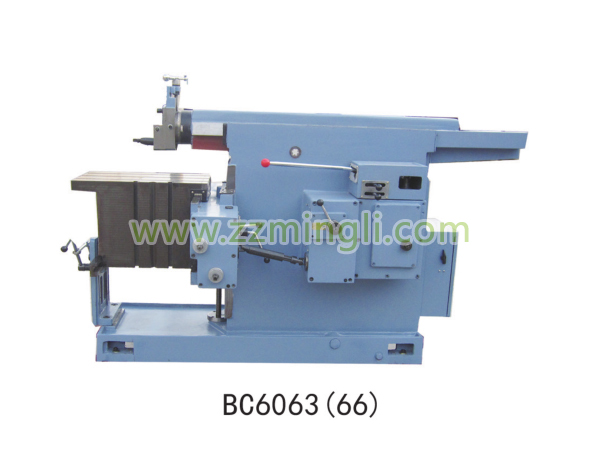

BC6063(66)
|
Max.cuttinu length |
630(660)mm |
|
Max. cross travel of table |
400mm |
|
Max. distance from undersurface of ram to worktable |
385mm |
|
Max. vertical stroke of table |
360mm |
|
Table area |
630(660)*400mni |
|
Max. working distance of knife rest |
120mm |
|
Max. Swn-d of knife rest |
360。 |
|
Max. size of tool bar |
20*30mm |
|
Reciprocalir^i ram minute frequency |
14. 20. 28, 40, 56. 80 |
|
Feed range of worktable horizontal |
0.4-5mm |
|
vertical |
0.08-1 mm |
|
Size of T*slol in the center of the worktable |
18mm |
|
Motor Power |
3KW |
|
Overall Dimensionsd-'W*!!) |
2225*1225* 1480mm |
|
weight |
1750kgs |
